Dr Colorchip (Lots of pics)

Postby asianflava » Sat Sep 10, 2011 8:40 pm

I bought the Dr Colorchip kit a while back and I finally got around to trying it out. It works pretty good, but I deviated from the directions a bit with a step that is totally counter-intuitive.

You must clean the area with alcohol before starting to remove any dirt or wax on the surface.
Then you dab the paint into the chips with the supplied brush.
You are supposed to immediately smear the paint blob with your gloved hand (glove is supplied)
After the paint has dried, you wet the supplied wipe with the supplied SealAct and wipe the excess paint off.

Once I tied it the first time I figured that I could get better results if I started with a better surface. The paint had peaks and valleys from the rocks. If the Colorchip kit filled the valleys, I wanted to remove the peaks. This is where I deviated from the kit.

Warning!!! You can severely damage your paint if you are not careful or if you do not know what you are doing!

I sanded the road rashed area with a sanding block before starting. I'm not sure what grit it was, but I think it was 400 or 600. Be safe and use 1000 grit paper.
After sanding, I buffed it out with a polisher and Walbernize. I don't know if it is the proper thing to use, but it's what I had on hand.
After the scratches had been buffed out, I proceeded to use the kit as directed. I suppose you can repeat it to fill deep chips. In the end, the chips are still there, but they are pretty much hidden by the touch up paint. It's not perfect, but it's cheaper than a respray.

This is what comes in the kit: The "Special cloth" felt like a cleanroom wipe.

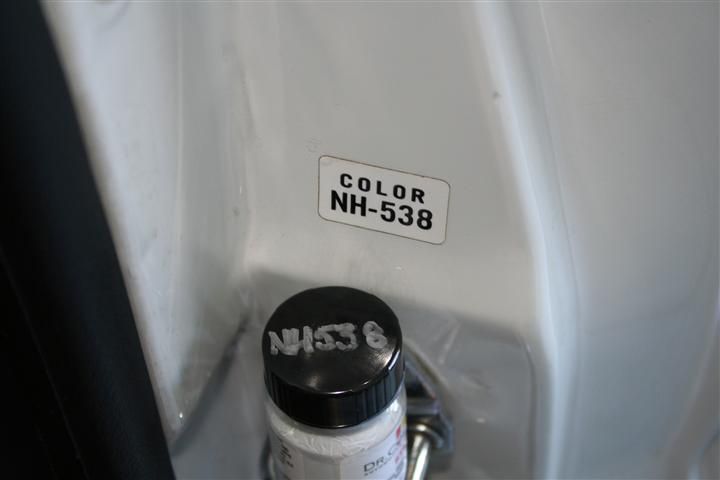

Confirmed that they sent me the correct color

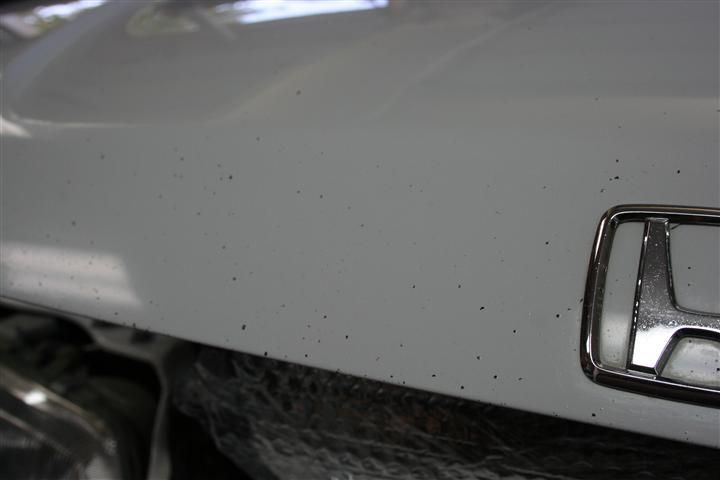

This is what I was dealing with

Prepped it with rubbing alcohol and a regular shop rag

LIGHTLY! sanded it with a block

Used Walbernize on my polisher

Set it to the slowest speed and buffed out the scratches

Wiped it down with alcohol again. Dabbed and smeared the touch up paint as directed

Removed the excess with the SealAct

Compared to the other untouched side
91 CRX Si (hers)
89 Civic Si (his)
01 Toyota Highlander (hers)
07 Toyota Tundra (his)
User avatar
asianflava

Posts: 3021
Joined: Sat Aug 21, 2010 12:16 am

Re: Dr Colorchip (Lots of pics)

Postby kaminsknator » Sat Sep 10, 2011 9:26 pm

wow good work!
Pro- fun to drive
Con- no longer have money
User avatar
kaminsknator

Posts: 563
Joined: Tue Dec 09, 2008 5:20 am
Location: Moscow, ID

Re: Dr Colorchip (Lots of pics)

Postby 89crxk20 » Sat Sep 10, 2011 9:54 pm

That looks really great! Finished product?
1989 Honda CRX Si
1989 Honda Civic LX
1992 Honda Prelude Si
1987 Honda Spree ;)
FS Thread: http://www.k20a.org/forum/showthread.ph ... ost1397077
89crxk20

Posts: 285
Joined: Thu May 05, 2011 11:22 pm
Location: Wisconsin

Re: Dr Colorchip (Lots of pics)

Postby Its me DUB » Sat Sep 10, 2011 10:47 pm

Wow very cool. I could us this for our beat Fit...
User avatar
Its me DUB
Grill Master

Posts: 7633
Joined: Thu Dec 21, 2006 6:18 pm
Location: Charleston - Myrtle Beach, SC

Re: Dr Colorchip (Lots of pics)

Postby dmlemus » Sun Sep 11, 2011 2:46 am

I've actually been thinking about using this product.
From a distance I bet the results looks great, but once you get close, you can probably see the imperfections. Eh...I can deal with that
89 CRX Si Build Thread
http://www.crxcommunity.com/vi...29182

B R I D G E P O R T • B U I L T

"Painting is an infinitely minute part of my personality."
-Salvador Dali

Check out my Store!
http://onpointcali.bigcartel.com/

J's Racing /// Active Traction Service /// SunLine Racing
User avatar
dmlemus

Posts: 2767
Joined: Sat May 23, 2009 12:15 am

Re: Dr Colorchip (Lots of pics)

Postby AfrostREX » Tue Sep 13, 2011 10:45 pm

wow i need to get my hand on this
User avatar
AfrostREX

Posts: 11
Joined: Tue Mar 29, 2011 11:10 pm
Location: port orchard

Re: Dr Colorchip (Lots of pics)

Postby asianflava » Tue Sep 13, 2011 11:36 pm

If you look at the glare on the bottom edge of the hood (second to last pic), you can see that the surface is still pitted. The paint fills it in somewhat and the color disguises it. I didn't clean the brush so I ordered some more. I also got the paint squeegee that they sell.

When you smear the paint with your finger, it pulls some out of the pit. I'm thinking that the squeegee will prevent this as well as remove the excess paint better. Having less paint to remove will make the SealAct step quicker and easier.

I forgot to add, I got the smallest kit that they offer, even with the road rash on the hood, there is more than enough chemical.
91 CRX Si (hers)
89 Civic Si (his)
01 Toyota Highlander (hers)
07 Toyota Tundra (his)
User avatar
asianflava

Posts: 3021
Joined: Sat Aug 21, 2010 12:16 am

Re: Dr Colorchip (Lots of pics)

Postby crexrudy » Wed Sep 14, 2011 1:23 am

Extremely Helpful, because I so many chips on my car it's not even funny :shock:
I prefer twisty turns!!
1st-1990 CRX HF (r.i.p)
2nd-1989 CRX Si (current)
I prefer twisty turns!!
User avatar
crexrudy

Posts: 98
Joined: Sat Jan 30, 2010 9:41 pm
Location: San Francisco, CA

Re: Dr Colorchip (Lots of pics)

Postby REP DA REX » Wed Sep 14, 2011 4:38 am

looks good
Project:Rusty Hawai'i
viewtopic.php?f=26&t=50384
89 dx- mpfi swapped-intake -header-full exhaust.
User avatar
REP DA REX

Posts: 495
Joined: Mon Jun 20, 2011 11:35 pm
Location: FAR FROM BABYLON, HAWAII

Re: Dr Colorchip (Lots of pics)

Postby TonY_D » Fri Sep 16, 2011 12:40 pm

very nice! looks great
Bone stock 88 Polar White CRX HF
User avatar
TonY_D

Posts: 41
Joined: Thu Aug 27, 2009 4:18 pm
Location: Pleasanton, California (Bay Area)
