Differential Installation

Postby LowFlyin » Thu Jan 31, 2008 1:49 pm

Installing differential in Honda Transmission

This install was done on a Honda Type-R transmission. The write up should be fairly universal with the difference being mostly in dimensions, maybe some torque specs, and cable vs. linkage shift.

(Having this around helps, too)


Disassembly


Alright. You have a transmission to take apart and put back together. Actually, it’s not as bad as you think. 

Start by removing the backup light switch and the 14mm set screws on the transmission housing. The set screws are located in different locations: one is on the bottom side of the transmission and the other is on the top.



Note! – When removing the set screws, there is also a spring and a ball bearing in there. DO NOT LOSE THEM!
Last edited by LowFlyin on Thu Jan 31, 2008 4:12 pm, edited 1 time in total.
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby LowFlyin » Thu Jan 31, 2008 1:50 pm

Flip the transmission where the bell housing faces down and put something under one side so there is no pressure on the input shaft.


Get a ½” drive ratchet (and maybe a short extension), and remove the 32mm sealing bolt. It is now located on the top of the transmission and looks like a flat disc with a ½” square in it.


Next, remove the 16 12mm bolts that hold the transmission housing and put them aside. (I have this picture though!)


Now that you have the 32mm sealing bolt out, you can look down inside the hole and see a snap ring.


You cannot completely remove the snap ring, but you have to spread it and remove it from the groove that it sits in.
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby LowFlyin » Thu Jan 31, 2008 1:50 pm

Now you are ready to separate the housing from the transmission.


Put the housing to the side. Now would be a good time to replace the oil seal in the housing and clean up the old gasket material.

Remove the reverse shift holder and reverse idler gear. There are two 10mm bolts. (These are the only bolts you have to deal with once you are in the transmission. I thought there would have been more, myself!)

Reverse Shift Holder


Reverse Idler Gear

Just pull up.
Last edited by LowFlyin on Thu Jan 31, 2008 3:02 pm, edited 1 time in total.
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby LowFlyin » Thu Jan 31, 2008 1:51 pm

Next is the Change Holder Assembly.


Before you remove it, look how it sits so you know how to put it back together.

To remove, just grab the shaft and pull up.


Then pull up on the interlock and shift piece.


And put them back together and place them aside.
Last edited by LowFlyin on Thu Jan 31, 2008 3:41 pm, edited 1 time in total.
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby LowFlyin » Thu Jan 31, 2008 1:51 pm

Next is the gear sets. I know they look scary, but get a good look at them so you know how they fit back together. Then, grab a hold of both sets (there are two shafts) and pull up.



Now the differential just pulls out. This would be a good time to replace the oil seal on the bottom housing and clean up the old gasket material.

The speedometer gear and final gear on the old differential need to be removed. They will go on the new differential. To remove the speedometer gear, I used a 3 pronged gear puller. To put the speedometer gear on the new differential, I put the gear in the oven at 300 degrees and let it cook for an hour. The gear will just drop on the differential. Then let it cool. The final gear bolts are LEFT HAND THREAD! To put the final gear on the new differential, just unbolt and then bolt it on. Torque spec on the bolts is 74.5 ft.lbs.

Did I mention the final gear bolts are LEFT HAND THREADED?

It is possible that the replacement bearings will not be the same type. In my case, the old bearings were two piece tapered roller bearings and the bearings I got from Honda were sealed roller bearings. Save one of the old bearings so you have something to put between the new bearing and the driver (socket) when you are pressing the bearing on.

You will probably need some shims so you can get the proper clearance on the differential. Honda has a list of 80mm shims of varying thicknesses. I used machine bushings from NAPA, they worked great!

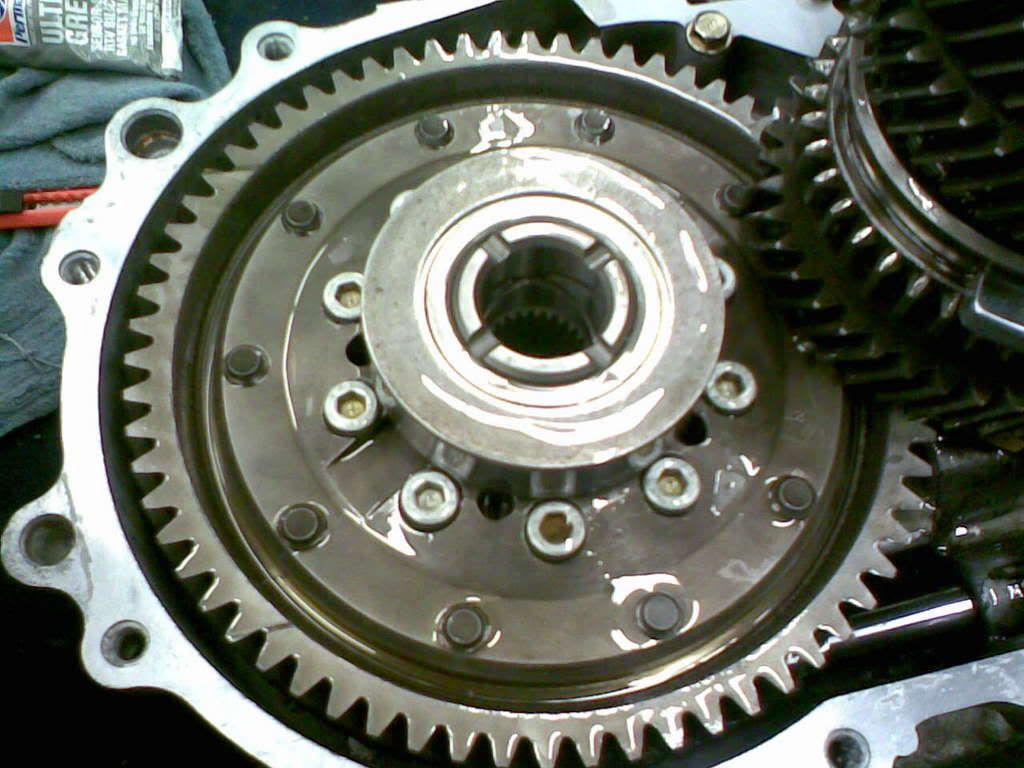

You can see one sitting on top of the differential in this picture.
Last edited by LowFlyin on Thu Jan 31, 2008 3:48 pm, edited 7 times in total.
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby LowFlyin » Thu Jan 31, 2008 1:52 pm

Assembly

The differential drops back into place. Put the housing back on and tighten it down with 6-8 bolts (20 ft.lbs) evenly spaced around the housing. With a feeler gauge, check the clearance between the shim and the housing. Spec is 0 to 0.004 inches.


Remove the housing again, and reassemble the transmission.


Some of you may have an easier time putting the transmission housing back on than I did. I needed the help of another person to get everything bolted back together. The shaft on the interlock and change piece did not want to go back into its hole.



Also, there is a finger on taller gear set that has to fit into a groove on the inside of the housing.


Before putting the Hondabond (Grey Liquid Gasket) on the housing, do a test fit to see if everything goes back into place. You won’t want to scrape the gasket off again. This is where my friend came into play. He held the interlock shaft in place with a slim regular screwdriver while I put the housing back on. Don’t forget the snap ring that is in the housing. It will have to be put into place before the housing will go back on.

Last edited by LowFlyin on Thu Jan 31, 2008 3:51 pm, edited 3 times in total.
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby LowFlyin » Thu Jan 31, 2008 1:52 pm

Now that the housing is back on and in place with the Hondabond, tighten the 16 bolts to 20 ft.lbs. Start in the middle of the top using the pattern pictured below.


And reinstall the back-up light and set screws.


And you are done! Yay!
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby Konstantin » Thu Jan 31, 2008 2:37 pm

Great write up. Definitely +1 :-)b
Konstantin
89 CRX Si - Daily Project ;)
User avatar
Konstantin

Posts: 60
Joined: Sun Jun 17, 2007 5:49 pm
Location: North Atlanta, GA

Postby rex2nr » Thu Jan 31, 2008 2:39 pm

looks like a great write-up!
-Scott-
projectCRX Sold
1999 Ford Ranger - Project DD 2011 Ford Escape - family/dog/parts hauler
User avatar
rex2nr
Resto-Modder

Posts: 9844
Joined: Thu Jan 12, 2006 11:45 pm
Location: Rochester, NY

Postby ChokolAwt » Thu Jan 31, 2008 3:55 pm

i propose movement to the "how-to" section...


+1, i might get around to doing one of these... can you feel the benefit while driving and during launch?
SupaHondaCRX wrote:do you want your car to be [crud] balls fast or not?

vouch for: yamaha6611, mattminerdotcom, blackbirdpilot, Reckone, nylumiro
User avatar
ChokolAwt
Dude... wait, what?

Posts: 3988
Joined: Sun Jul 29, 2007 8:37 am
Location: V is for Vagina

Postby LowFlyin » Thu Jan 31, 2008 3:59 pm

Well...I actually did the swap into a CTR transmission which already had the LSD in it. I had purchased a Quaife LSD before I bought the CTR swap. I went ahead and put the Quaife in and sold the CTR LSD on eBay.

I haven't been able to drive the car much. I'm still having some issues with it. My CRX has been down for a year now...but I'm hoping it will be up and running within the next month. I plan on tearing down the fuel system this weekend so I can find out what is wrong.

Thanks for the comments on the write-up. I've wanted to write it for 6 months now (that's when I took the pictures), and I just had some extra time today with it being cold and snowy. :)
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby downest » Thu Jan 31, 2008 7:11 pm

Looks good! Why so many posts in the same thread?

Could you email me the pictures so I can add them to the server?
Tom Wood (Downes)
'91 CRX Si B18C5 #591 hill climber
'88 3.4Runner daily driver/trail rig
Wicked Performance Group
User avatar
downest
Wicked Tom

Posts: 9746
Joined: Mon Jan 23, 2006 1:07 am
Location: Manchester, NH

Postby LowFlyin » Thu Jan 31, 2008 10:40 pm

I didn't know what the policy was. A couple of the boards I'm on have a policy where you can only have 6 pictures per post.
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Postby Mista Bone » Fri Feb 01, 2008 12:40 am

put the tranny 1/2 way into 4th gear, case will fall back on. That trick holds the shaft into proper location.

Took me a while to figure that out.

Too Sexy drag spool

BoneSpec Transmission
"D" Tranny guru
User avatar
Mista Bone

Posts: 5265
Joined: Tue Jan 22, 2008 10:11 pm
Location: Cincity, oHIo

Postby jfrolang » Fri Feb 01, 2008 2:14 am

downest wrote:Could you email me the pictures

Right click > Save As.
User avatar
jfrolang
Site Admin

Posts: 16560
Joined: Wed Aug 24, 2005 5:53 pm
Location: Boise, ID

Postby downest » Fri Feb 01, 2008 9:55 am

jfrolang wrote:
downest wrote:Could you email me the pictures

Right click > Save As.


It would be easier if he just emailed me. And I don't get much email, so it would be fun too. :P

EDIT: as I was typing I thought, hey, I should check my email! I checked and the pics are there, so.... tom - 1 jfro -0
Tom Wood (Downes)
'91 CRX Si B18C5 #591 hill climber
'88 3.4Runner daily driver/trail rig
Wicked Performance Group
User avatar
downest
Wicked Tom

Posts: 9746
Joined: Mon Jan 23, 2006 1:07 am
Location: Manchester, NH

Postby jfrolang » Fri Feb 01, 2008 5:33 pm

OK, so he emails them to you, and you still have to download/save them. Not easier. :)
User avatar
jfrolang
Site Admin

Posts: 16560
Joined: Wed Aug 24, 2005 5:53 pm
Location: Boise, ID

Re: Differential Installation

Postby LowFlyin » Thu Aug 11, 2011 12:55 pm

Bump for addition to the FAQ.

:P
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Re: Differential Installation

Postby jfrolang » Thu Aug 11, 2011 1:10 pm

LowFlyin wrote:Bump for addition to the FAQ.

:P
It is done.
User avatar
jfrolang
Site Admin

Posts: 16560
Joined: Wed Aug 24, 2005 5:53 pm
Location: Boise, ID

Re:

Postby vanrij » Thu Aug 11, 2011 1:18 pm

LowFlyin wrote:To put the final gear on the new differential, just unbolt and then bolt it on. Torque spec on the bolts is 74.5 ft.lbs.

Did I mention the final gear bolts are LEFT HAND THREADED?


These bolts always give me a hard time. Any one have any tips/trick/tools to hold the diff stationary while you break these bolts free or re-torque them to spec?
User avatar
vanrij

Posts: 1904
Joined: Wed Dec 06, 2006 5:00 pm
Location: Salt Lake City, UT

Re: Differential Installation

Postby jfrolang » Thu Aug 11, 2011 1:19 pm

I used some scrap pieces of wood and a vise when I did mine.
User avatar
jfrolang
Site Admin

Posts: 16560
Joined: Wed Aug 24, 2005 5:53 pm
Location: Boise, ID

Re: Differential Installation

Postby Tian90crx » Thu Aug 11, 2011 2:19 pm

nice write up, i was just in OK city picking up my 3rd crx,
Aftermarket Quality Turbo, Suspension, interior parts FOR SALE https://crxcommunity.com/viewtopic.php?f=8&t=156674
User avatar
Tian90crx

Posts: 4409
Joined: Thu Jul 29, 2010 11:24 pm
Location: DFW

Re: Differential Installation

Postby LowFlyin » Thu Aug 11, 2011 2:33 pm

jfrolang wrote:I used some scrap pieces of wood and a vise when I did mine.


I did the same. :-)b
Chris @ DeatschWerks
1991 CRX SiR
1991 Civic Si
1991 Civic Wagon RT4WD
2014 Fiesta ST
User avatar
LowFlyin

Posts: 894
Joined: Thu May 17, 2007 11:03 am
Location: Oklahoma City

Re: Re:

Postby Mista Bone » Thu Aug 11, 2011 3:00 pm

vanrij wrote:
LowFlyin wrote:To put the final gear on the new differential, just unbolt and then bolt it on. Torque spec on the bolts is 74.5 ft.lbs.

Did I mention the final gear bolts are LEFT HAND THREADED?


These bolts always give me a hard time. Any one have any tips/trick/tools to hold the diff stationary while you break these bolts free or re-torque them to spec?


I hold the diff/ring gear with my left hand, wearing a leather glove.

Impact the bolts in/out, done.
BoneSpec Transmission
"D" Tranny guru
User avatar
Mista Bone

Posts: 5265
Joined: Tue Jan 22, 2008 10:11 pm
Location: Cincity, oHIo

Re: Differential Installation

Postby LowFlyin » Fri Aug 12, 2011 2:37 pm

Well yeah, if you want to break out the power tools, Bone. :P
